Face Fillets with Autodesk Inventor

By David Melvin, PE, TEDCF Publishing

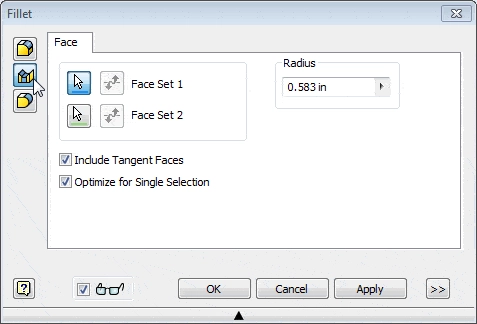

First I’ll show you how to evoke it. Open the Fillet command, and then select the second icon on the left of the dialog box.

Face Fillets

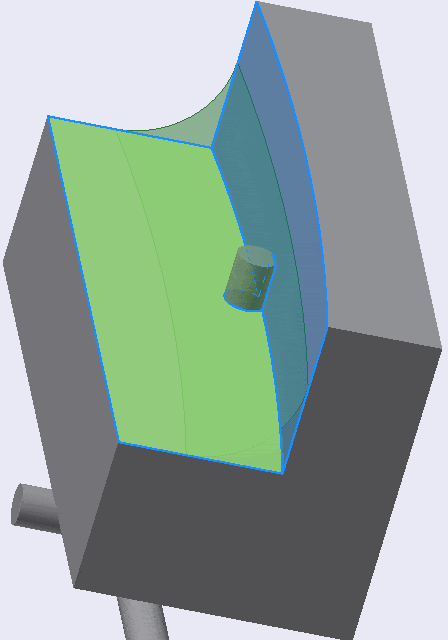

The next step is to select faces, and this is what makes this command unique.  You select faces and not edges, and the fillet will be formed between the faces.

Face Fillets

So anything that would normally get in the way of making the fillet is absorbed by the fillet, but…
