Full Round Fillets with Autodesk Inventor

By David Melvin, PE, TEDCF Publishing

The surfaces do not need to be symmetrical, and they don’t even need to be in contact with each other.

Use the Full Round Fillet Command

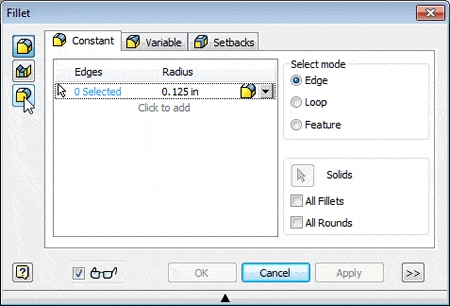

Open the Fillet command, and select the bottom icon on the left side of the dialog box.

Full Round Fillets

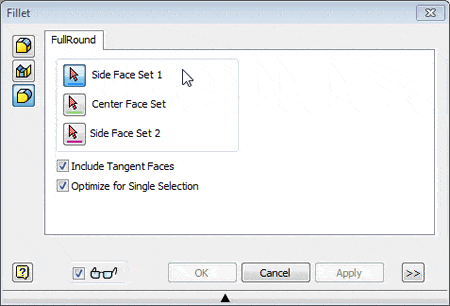

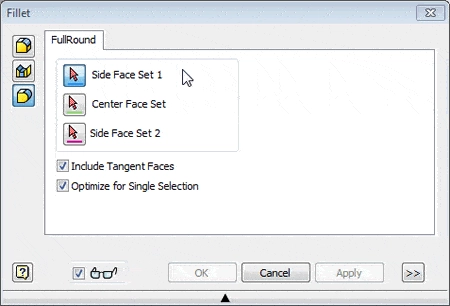

The next step is to select three tangent surfaces.

Full Round Fillets

You just select one side, the middle, and then the other side. When you select each surface…
