Move Copy Sketch Geometry with Autodesk Inventor

By David Melvin, PE, TEDCF Publishing

Let’s say you want to duplicate geometry on a sketch, but none of the pattern commands will do what you want to do. You can either draw each entity or you can use one of two ways to copy it.

In this tip you’ll learn how to use the Move command to copy geometry.

Move Copy Sketch Geometry

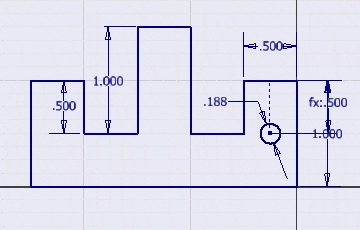

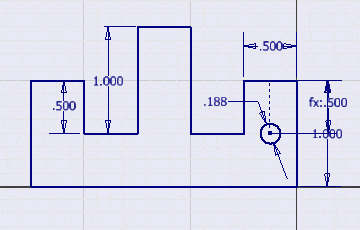

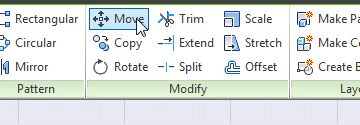

Let’s say that we want to add the same circle and construction line to the middle column. Open the Move command in the Modify panel.

Move Copy Sketch Geometry

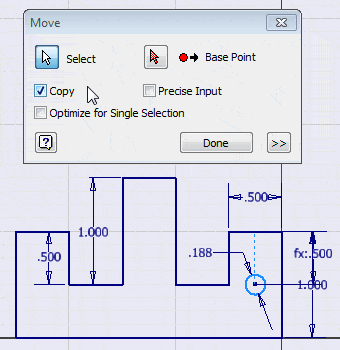

Select the geometry you want to copy, and check the Copy option.

Move Copy Sketch Geometry

In this case I’ve selected the circle and the construction line.

The next step is…
