Planning Ahead with Autodesk Inventor - Parameters

By David Melvin, PE, TEDCF Publishing

This is the last part of a short mini-series of tips focused on strategy. How to plan ahead to simplify your work.

Parameters are extremely helpful for guiding part construction with design specifications.

In this example I’ll draw a cuboid, which is just a rectangular solid, but you can use the process to construct any part.

Start by opening a part file and then open the Parameters dialog box. Click the Manage tab, and then click the Parameters button.

Planning Ahead with Autodesk Inventor - Parameters tat58-1

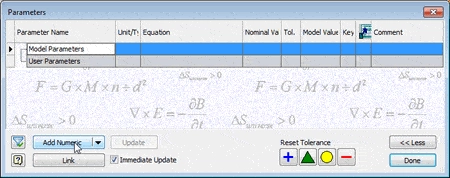

This opens the Parameters dialog box.

Let’s say that the design specifications for the cuboid is it has to be 1-inch high, 2-inches wide, and 3-inches long. So we need to add parameters for each dimension.

Planning Ahead with Autodesk Inventor - Parameters tat58-2

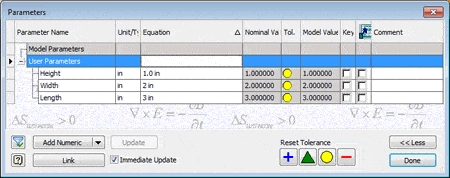

Click the Add Numeric button, and add Height, Width, and Length parameters. Also change the value in the equation cell as shown below.

Planning Ahead with Autodesk Inventor - Parameters tat58-3

Now we can use the design parameters to control the size of the part. Click Done to close the dialog box.

The next step is…

Continue Reading

Page 1 of 2
