Planning Ahead with Autodesk Inventor - Fillets

By David Melvin, PE, TEDCF Publishing

This is the second part of a short mini-series of tips focused on planning ahead to simplify your work.

When to Add Fillets
There’s a basic rule when it comes to fillets. If the fillet is not used to form a feature, then it should be one of the last features added to the part.

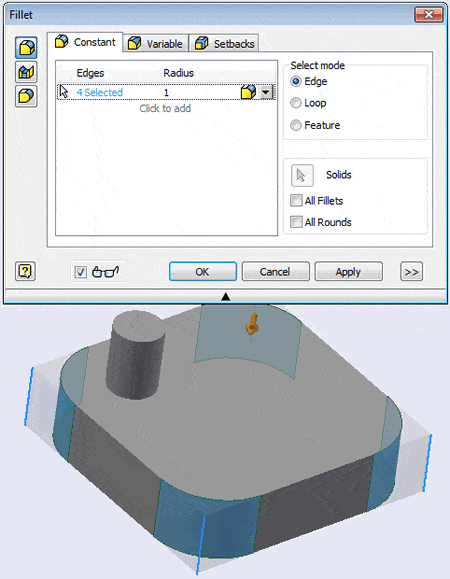

This is an example of how the Fillet command can be used to form a feature.

Planning Ahead Fillets

The fillet above is not a finishing fillet. It forms the shape of the base feature.

The fillet below is…
