Finding Parts in Autodesk Inventor Assemblies

By David Melvin, PE, TEDCF Publishing

As your assemblies get larger, you’ll find that it can get difficult to find parts in the graphics area and in the browser. This tip will show you how to quickly find parts and subassemblies in both places.

Finding Parts in Autodesk Inventor Assemblies tat53-1

Finding Parts in the Browser

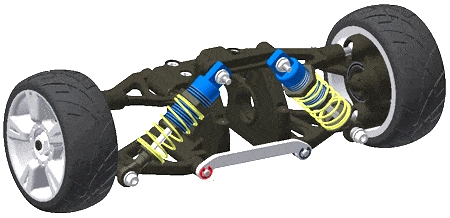

Let’s say you need to find the E-Clip highlighted in red in the image above.

Finding Parts in Autodesk Inventor Assemblies tat53-2

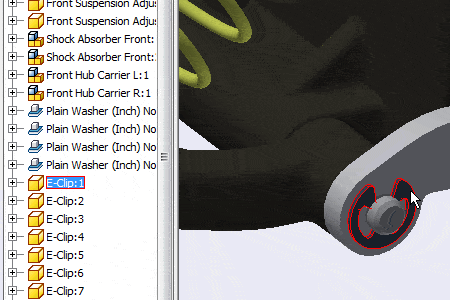

Select the clip and it’s highlighted in the browser. If you select a component in a subassembly, the subassembly is highlighted in the browser.

Finding Parts in the Graphic Area
Use the…

Continue Reading

Page 1 of 2
