Fixing Surface Gaps in Autodesk Inventor Files

By David Melvin, PE, TEDCF Publishing

You’ve applied the Stitch Surfaces command to a surface body, but it didn’t create a solid body.

gaps or missing surface

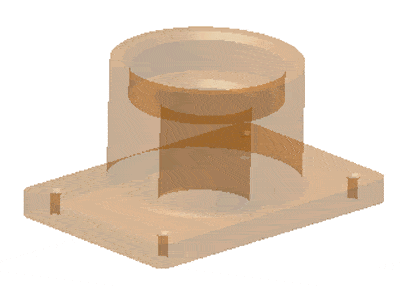

Usually this means there are gaps or missing surfaces.

Stitch the Surfaces
If you’ve already applied the Stitch Surfaces command, then undo the operation. You need to be able to apply a new stitch operation to solve this problem. Open the Stitch Surfaces command, select all the surfaces, and then click the Apply button.

stitch gaps or missing surfaces

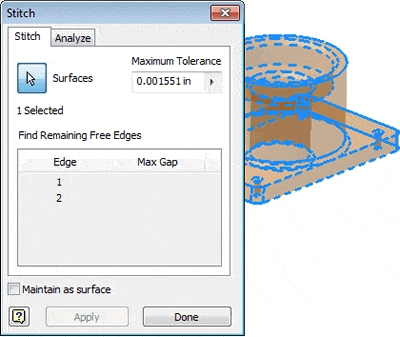

Find the Edges with Gaps
The Find Remaining Free Edges window shows all…
