Repairing Imported Surfaces

By David Melvin, PE, TEDCF Publishing

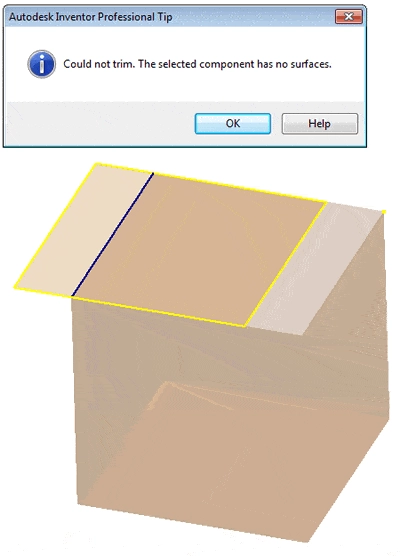

You’ve imported a file that needs surface modifications, but when you try to issue standard surfacing commands you get the following warning:

Component has no surface 1

Repair the File

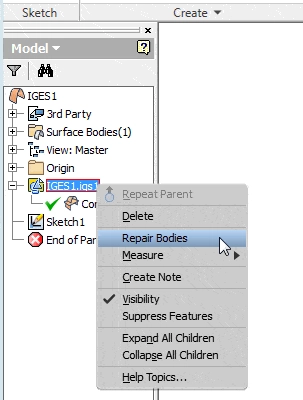

One way to fix this problem is to repair the file. Right click on the file in the browser and select Repair Bodies.

Component has no surface

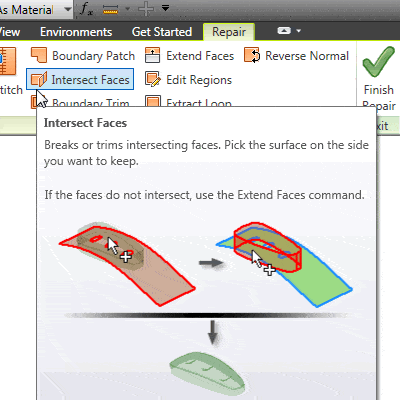

This opens the Repair tab.  Many of these commands are similar to the standard surfacing commands you’ll find in the Model tab on the ribbon, but the one that stands out as the most useful is the Intersect Faces command.

Component has no surface

This command trims “surfaces” to their intersection. The key to using the command is to…
