Add Inventor Feature Intelligence to Control Dynamic Geometry

by David Melvin, PE, TEDCF Publishing

You’ve mastered the art of creating iParts and iFeatures, but did you know you can apply logical operators to your parts and features to make them even more intelligent?

In this quick exercise we’ll simplify this concept by creating a 1-inch cube with a 1/4-inch hole in it. If the hole diameter is less than 1/8th of an inch, the hole will be suppressed.

Create a Sample Part.
You can apply the same technique to iParts and iFeatures, but for demonstration purposes we’ll use a standard part.  Open a standard part file, create a 1-inch cube, and then use the Hole command to put a ¼-inch hole through the cube.  Be sure to center the hole on a face of the cube.

Image Showing a cube with a hole in it.

Identify the Parameter.
Now open the Parameters dialog box to learn the name of the parameter that defines the diameter of the hole. You’ll find the Parameters command in the Manage tab.

Parameters dialog box

In this case the diameter of the hole is the d4 parameter.

Open Feature Properties.

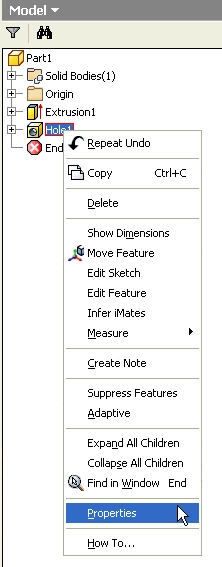

Once you know the parameter name for the diameter, right click on the Hole1 feature in the browser and select Properties.

Selecting Properties image

Edit Feature Properties.
The Feature Properties dialog box shows…

Page 1 of 2
