Moving Sketch Geometry with Autodesk Inventor

By David Melvin, PE, TEDCF Publishing

You’ve drawn an intricate sketch only to find that some of the geometry was drawn on the wrong feature. Wouldn’t it be nice if you could just move the geometry to the correct location?

This tip shows you how to move sketch geometry.

Moving Sketch Geometry with Autodesk Inventor tat62-1

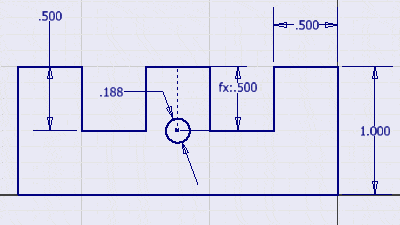

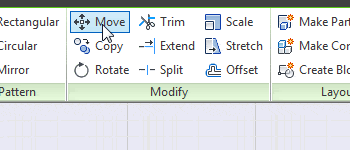

This is a fully constrained sketch with a circle on the middle column. Let’s say we discovered that it was supposed to be drawn on the right column. To solve this problem we’ll use the Move command in the Modify panel.

Moving Sketch Geometry with Autodesk Inventor tat62-2

The next step is…

Continue Reading
