Bend Part Minimum in Autodesk Inventor

by John Koop, Inventor Specialist, TEDCF Publishing

This tip explains how the Bend Minimum option works in Autodesk Inventor.

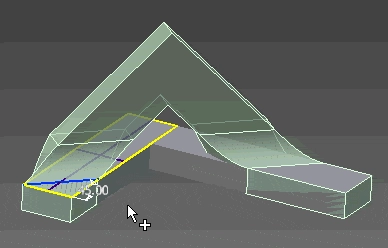

As you can see in the first picture, the L-shaped part has a 45 degree bend line on one leg, but the bend has also been applied to the opposite leg.  The Bend Line extends infinitely in both directions, and will bend (or attempt to bend) the part wherever the line crosses the part.

Bend Part Minimum

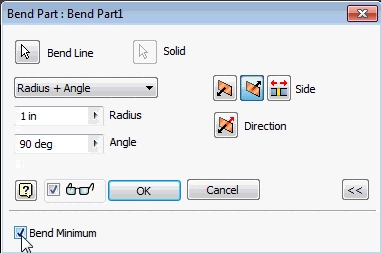

If you check the Bend Minimum option,

Bend Part Minimum

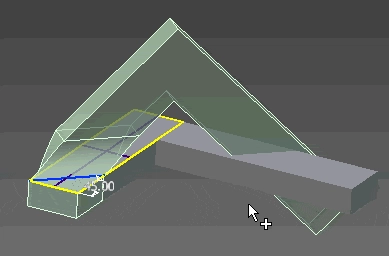

the part will only be bent along the selected visible line.

Bend Part Minimum
