Autodesk Inventor Section Views

By David Melvin, PE, TEDCF Publishing

Autodesk Inventor section views are very helpful when it comes to looking and working inside assemblies. This short tip will show you how to use the section view commands.

Start by opening an assembly.

Section Views

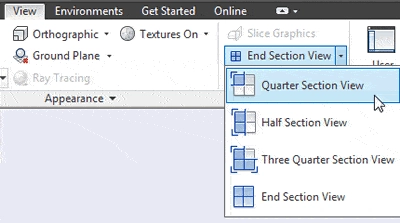

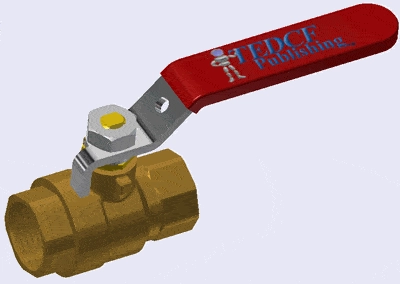

In this example I’ll use the Quarter Section View command to slice through the ball valve in two directions. Open the Quarter Section View command from the View tab. It’s located in the Appearance panel.

Section Views

The next step is…

Page 1 of 4
