Locking Model Features in SolidWorks

by David Melvin, PE, TEDCF Publishing

An outstanding feature of SolidWorks is the ability to lock features in a model so they cannot be modified unless you unlock them.  This not only safeguards the features, it also speeds up rebuild time.

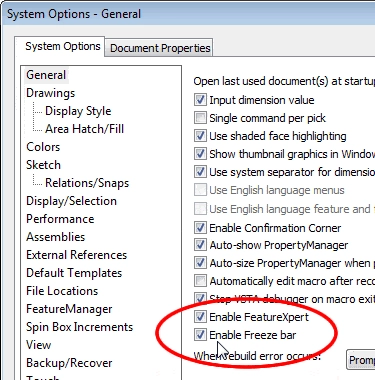

The first step is to turn on the Freeze bar.  Open the System Options, and on the General page check Enable Freeze bar.

Locking Model Features

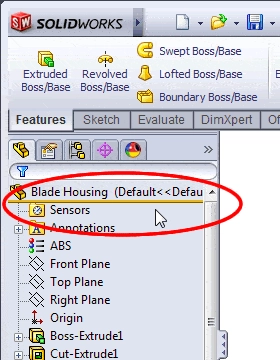

This adds the Freeze bar to the design tree in the Feature Manager.

Locking Model Features

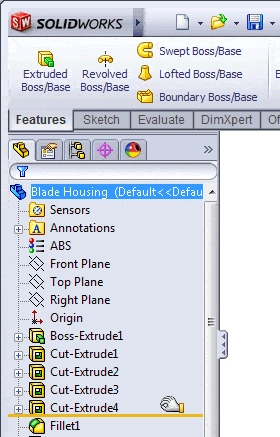

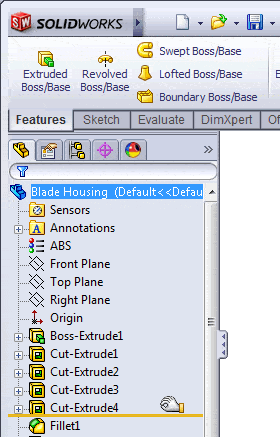

Drag the bar below the features you want to lock.

Locking Model Features

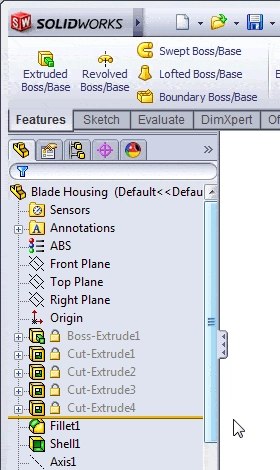

Release your left mouse button, and the features are locked.

Locking Model Features

Locked features cannot be…

Page 1 of 2
