by John Koop, SolidWorks Specialist, TEDCF Publishing

The picture is then added onto the sketch.

Inserting Pictures into a Sketch in SolidWorks SWTAT40-4

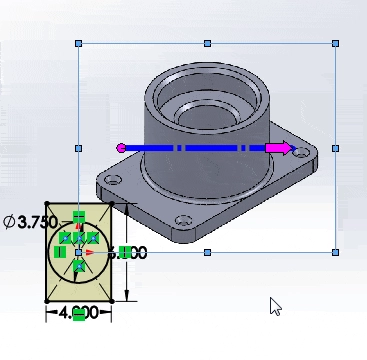

Now you can click and drag the picture to anywhere in the graphics area and use the adjustment handles to scale it.

Inserting Pictures into a Sketch in SolidWorks SWTAT40-5

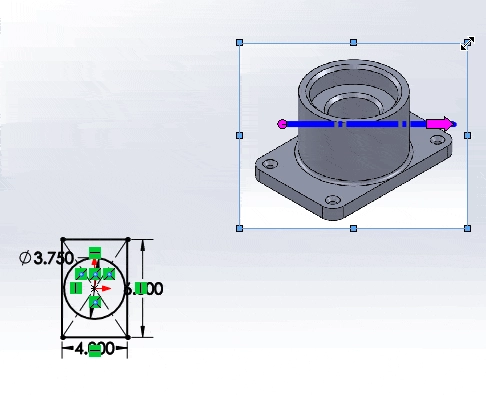

You can also edit the pictures size and location in the Property Manager.

Inserting Pictures into a Sketch in SolidWorks SWTAT40-6

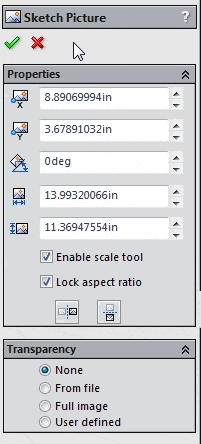

With these options you can adjust the distance of the picture from the origin, the size of the picture, and also add transparency to it.

When you exit the sketch, the picture disappears. It is only visible inside the sketch. To edit the picture, simply edit the sketch and then double click the picture. To delete the picture, right click on the picture in the feature manager, and select Delete.

Inserting Pictures into a Sketch in SolidWorks SWTAT40-7

You can also improve your productivity with SolidWorks by watching our courses.
