Inserting Pictures into a Sketch in SolidWorks

by John Koop, Inventor Specialist, TEDCF Publishing

In this quick tip, you will learn how to insert pictures into a sketch.

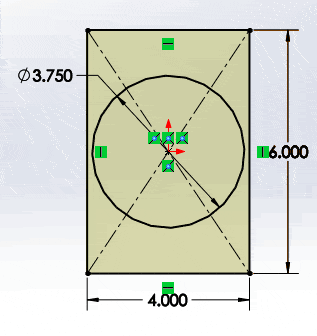

Here we have the first sketch of what will eventually be a Bearing Housing.

Inserting Pictures into a Sketch

Let’s say that while designing this housing, we want to be able to refer to a client provided picture.  You can add the picture directly to the sketch to make it that much easier to work from.

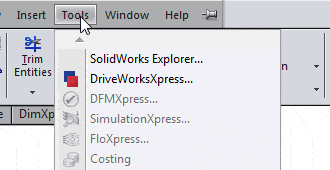

First, open the Tools drop down menu.

Inserting Pictures into a Sketch

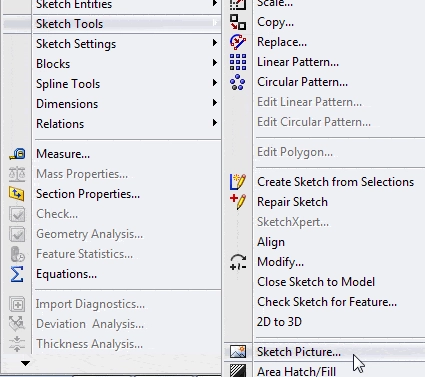

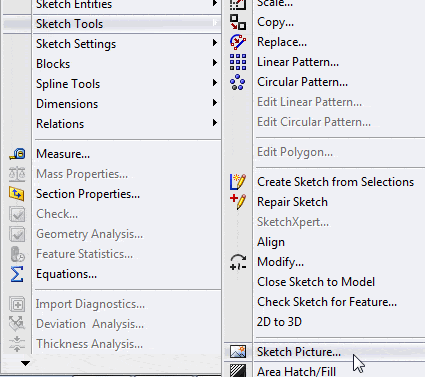

Next select Sketch Tools and then Sketch Picture.

Inserting Pictures into a Sketch

When you do, the Open file dialog box appears. Highlight the file and then click Open.

The picture is then…

Page 1 of 2
