Advanced Solidworks View Commands Maximize Workflow Speed

by Jonathan Cubero, SolidWorks Specialist, TEDCF Publishing

Controlling your views in SolidWorks is essential for maximum productivity. This tip will show you advanced view commands and hot keys that you may not have known were there.

Instead of clicking the Zoom-to-Fit magnifying glass icon in the Heads-up View toolbar, double-click the middle mouse button or type the “F” key.

Smooth Zoom
Hold the “Shift” key and the middle mouse button down. Then move the mouse up or down while still holding the middle mouse button to smoothly zoom in.

Z-Key Zoom
An alternate way to zoom in and out is with the “Z” key. Tap the “Z” key to incrementally zoom out. Hold the “Shift” key and tap the “Z” key to incrementally zoom in.

Advanced Solidworks View Commands Maximize Workflow Speed SWTAT1-1

Magnifying Glass

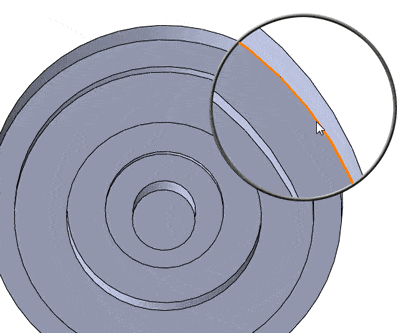

Type the “G” key to open the magnifying glass. You can zoom into a specific area and perform normal tasks like selecting or dimensioning inside the zoomed-in area. To exit out of the magnifying glass view, retype the “G” key, type “ESC”, or click in the graphics area.

Arrow Keys
Instead of rotating with the middle mouse button, rotate around a part using the arrow keys. Also, hold the “Shift” key and use the arrow keys to rotate in 90-degree increments. Use the left and right arrow keys while holding the “Alt” key to rotate clockwise and counter-clockwise. Holding the “Ctrl” key and using the arrows will allow you to pan around the part.

The “Ctrl” key and numbers 1-8 are hot keys for SolidWorks view commands.

Ctrl+1 = Front
Ctrl+2 = Back
Ctrl+3 = Left
Ctrl+4 = Right
Ctrl+5 = Top
Ctrl+6 = Bottom
Ctrl+7 = Isometric
Ctrl+8 = Normal To

Mouse Gestures
Right-click and hold to…

Continue Reading
