Quickly Add Notes to Files in SolidWorks - Page 2

by John Koop, SolidWorks Specialist, TEDCF Publishing

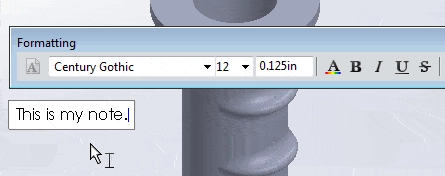

Once you have clicked in the graphics area, you can type your note and edit the text using the quick access toolbar.

Quickly Add Notes to Files in SolidWorks swtat39-5

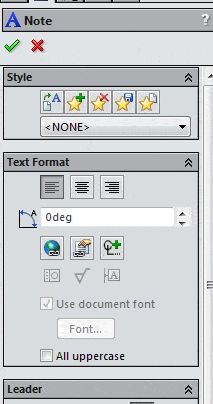

You can also change the format of the Note box in the feature manager. You can add a leader, edit the border and much more.

Quickly Add Notes to Files in SolidWorks swtat39-6

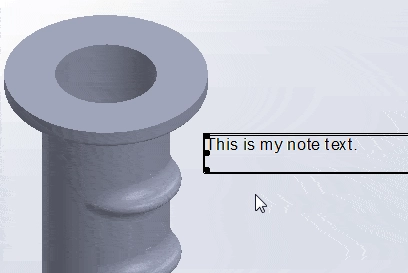

Another fast way to add a note is to type it out in a Word document and then simply copy and paste it into the SolidWorks file. When you do a text box appears containing your notes and you can drag it to anywhere in the graphics area.

Quickly Add Notes to Files in SolidWorks swtat39-7

To edit a Note pasted into a file you can double click it and the Word toolbar will open up where you can make your changes.

You can also improve your productivity with SolidWorks by watching our courses.
