Quickly Add Notes to Files in SolidWorks

by John Koop, SolidWorks Specialist, TEDCF Publishing

This quick tip will show you how you can quickly add a note box to any SolidWorks file.

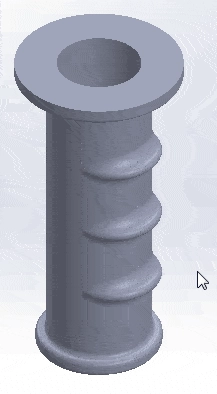

Here we have a part file for a hand grip.

Quickly Add Notes to Files in SolidWorks swtat39-1

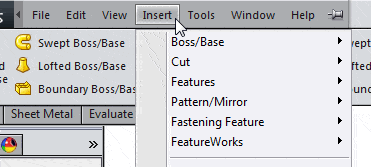

Let’s say you’re sending this file off to a colleague and want to add a note inside the part file. There are a couple ways you can do this. First, expand the Insert pull down menu.

Quickly Add Notes to Files in SolidWorks swtat39-2

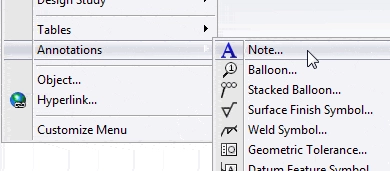

Now highlight Annotations and select Note.

Quickly Add Notes to Files in SolidWorks swtat39-3

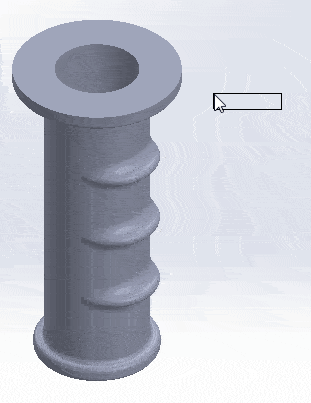

When you do the Note box is attached to your pointer and you can add it anywhere in the graphics window.

Quickly Add Notes to Files in SolidWorks swtat39-4

Once you have clicked in the graphics area, you can…

Continue Reading

Page 1 of 2
