Wireframe Assembly Components in SolidWorks

By David Melvin, PE, TEDCF Publishing

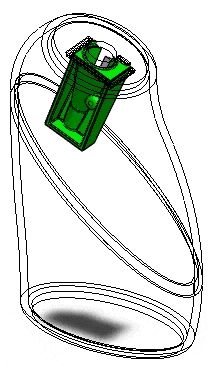

You would like to have an assembly show some parts in wireframe like the image below. This tip will show you how it’s done.

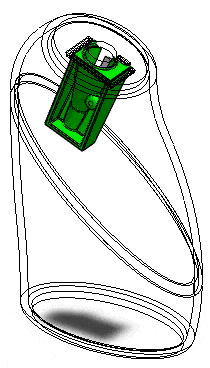

Wireframe Assembly Components in SolidWorks swtat43-1

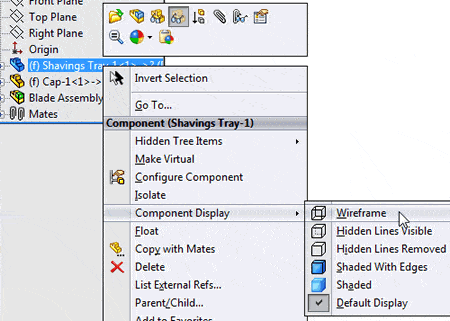

Right click the part you want to set to wireframe and select Component Display – Wireframe.

Wireframe Assembly Components in SolidWorks swtat43-2

The default setting is Default Display.

You can also improve your productivity with SolidWorks by watching our courses.
