Creating Custom Views in SolidWorks

by John Koop, SolidWorks Specialist, TEDCF Publishing

This is a quick tip that shows you how to create Custom Views in SolidWorks.

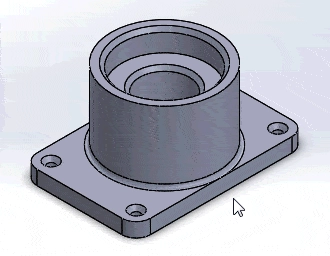

This is a Bearing Housing in a standard isometric view.

Creating Custom Views in SolidWorks swtat22-1

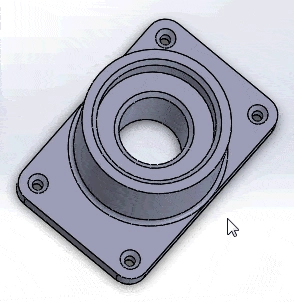

To create a custom view, first rotate the view until it is set the way you want.

Creating Custom Views in SolidWorks swtat22-2

Now, type the Spacebar to activate the View Orientation window.

Creating Custom Views in SolidWorks swtat22-3

From this window, you can…

Continue Reading
