Using Link to Thickness in SolidWorks

by John Koop, SolidWorks Specialist, TEDCF Publishing

This is a quick tip that shows you how to use the Link to Thickness option outside the Sheet Metal environment.

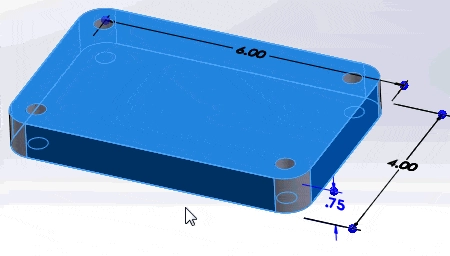

Here is a basic part that has been highlighted to show the part dimensions.

Using Link to Thickness in SolidWorks swtat19-1

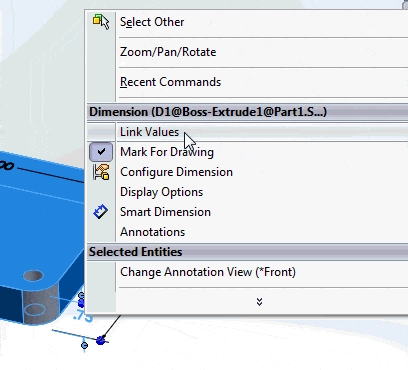

The first step is to designate which dimension is the thickness. In this case it’s going to be the .75-inch dimension. Right click the dimension and select Link Values from the drop down menu.

Using Link to Thickness in SolidWorks swtat19-2

Enter the name Thickness in the value cell and click Ok.

Using Link to Thickness in SolidWorks swtat19-3

You will notice that the Thickness dimension now has an Equation sign in front of it.

Using Link to Thickness in SolidWorks swtat19-4

Now the Link to Thickness option will be available in any Extrusion you create or edit.

Using Link to Thickness in SolidWorks swtat19-5

All you have to do is check Link to thickness to link the dimension to the Thickness variable.
