Saving Assemblies as IGES Files in SolidWorks

by John Koop, SolidWorks Specialist, TEDCF Publishing

This is a quick tip to show you how you can save an assembly as one IGES file or as a separate IGES file for each assembly component.

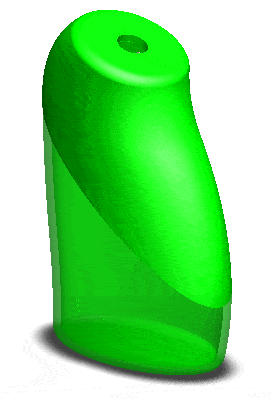

Here we have a handheld pencil sharpener assembly that contains two parts and one sub-assembly.

Saving Assemblies as IGES Files

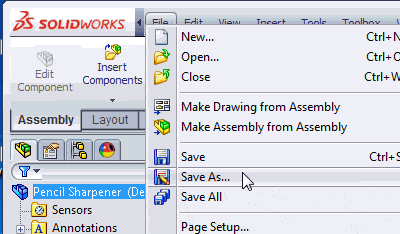

To save the file as an IGES file, click the Save As command.

Saving Assemblies as IGES Files

Then set the…
