Using Smart Mates in SolidWorks

by John Koop, SolidWorks Specialist, TEDCF Publishing

This is a quick tip about using Smart Mates and how they can help speed up your work.

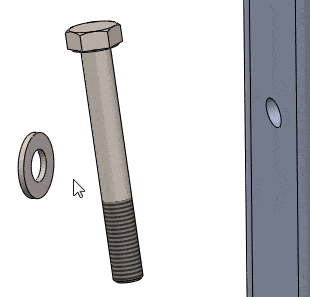

The right side of the image below shows one side of a square tube.  It also has a washer and bolt. I am going to show you how to mate these parts together using Smart Mates.

Using Smart Mates

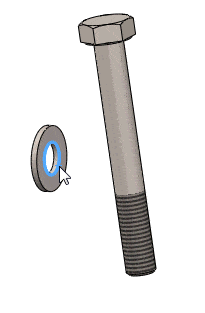

We’ll start by constraining the washer to the hole.  Hold the ‘Alt’ key down and select the inner edge of the Washer.

Using Smart Mates

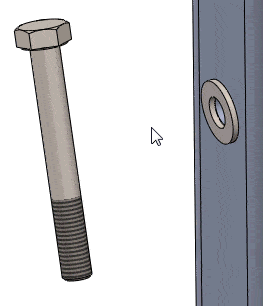

Now drag the washer to the hole while holding the ‘Alt’ key down. Once the washer is positioned over the hole, release the ‘Alt’ key and mouse button.

Using Smart Mates

Now you can expand the mates folder at the bottom of the Feature Manager and scroll to the bottom of the list to see the mates you’ve added.

Using Smart Mates

As you can see, SolidWorks has…

Page 1 of 2
