Using the Trim Command in SolidWorks

by John Koop, SolidWorks Specialist, TEDCF Publishing

This quick tip shows you how to use the Trim command.

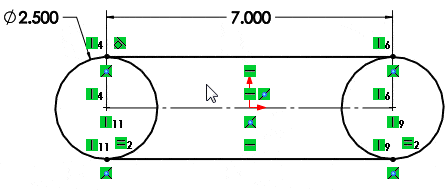

We’ll use this sketch to demonstrate its use.

Using the Trim Command

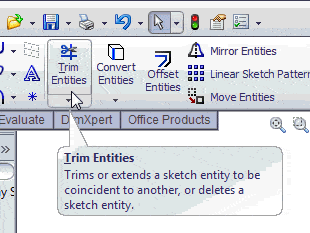

Let’s say we want to delete just the inner halves of both circles.  To do this, select the Trim Entities command from the toolbar.

Using the Trim Command

Now click and…
