Multiple Balloon Leaders in SolidWorks

by John Koop, SolidWorks Specialist, TEDCF Publishing

This is a quick tip on adding multiple leaders to a Balloon in SolidWorks.

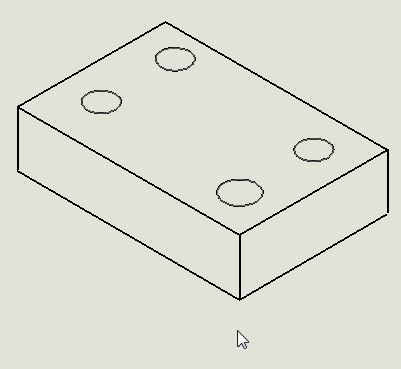

We’ll use this drawing view of a block with holes cut into it for an example.

Multiple Balloon Leaders

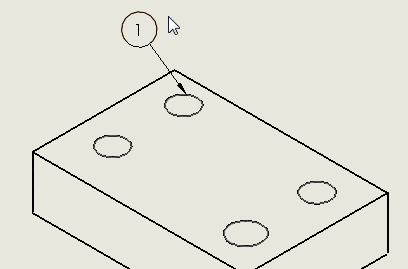

Now let’s add a Balloon to one of the holes.

Multiple Balloon Leaders

The hole below and to the left of this hole is the same size and depth.  Let’s say we want to add a second leader from the balloon to this second hole.  To do this…
