Updating Drawing Dimensions in SolidWorks

by John Koop, SolidWorks Specialist, TEDCF Publishing

When you make changes to your parts, wouldn’t it be nice if you could see altered dimensions in your drawings? This tip will show you a setting in SolidWorks that will do just that. It only affects drawing files that are closed when the dimension is changed.

First, open the System Options and select Colors.

Updating Drawing Dimensions

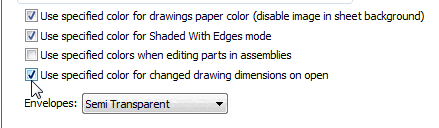

Now select the ‘Use specified color for changed drawing dimensions on open’ option at the bottom of the dialog box.

Updating Drawing Dimensions

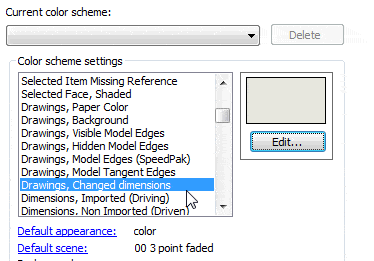

In the Color Scheme Settings at the top of the box, select Drawings, Changed dimensions.

Updating Drawing Dimensions

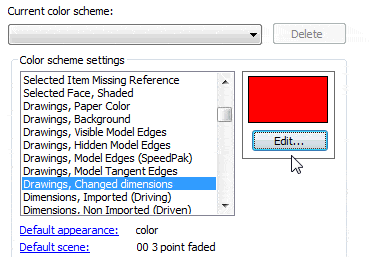

Now change the color. I’m using Red.

Updating Drawing Dimensions

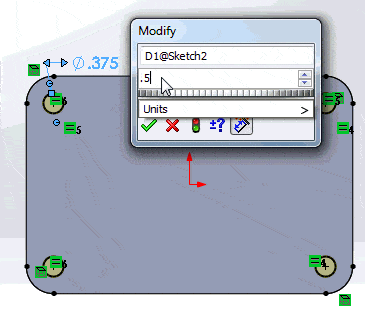

Now open a part and change a dimension. I’m going to change the diameter of the holes on this part from 3/8 of an inch to ½ an inch.

Updating Drawing Dimensions

Next, rebuild and…
