Quickly Add Notes to Drawings in SolidWorks

by John Koop, SolidWorks Specialist, TEDCF Publishing

This quick tip shows you how to add a Note to a Drawing in SolidWorks.

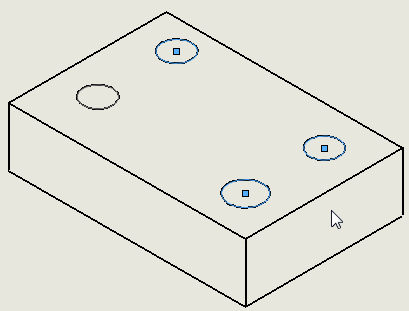

Here is an isometric drawing view  of a block with four holes cut into it.

Quickly Add Notes to Drawings

These three highlighted holes are through holes and the fourth hole is not. We’re going to add a Note specifying the through holes.

Quickly Add Notes to Drawings

Highlight the holes, and then click the Annotation Tab.

Quickly Add Notes to Drawings

Now select the Note command.

Quickly Add Notes to Drawings

When you move the cursor back into the graphics area, you can see…
