Tips and Tricks

Master SolidWorks!

How to Move the Command Manager in SolidWorks

by John Koop, SolidWorks Specialist, TEDCF Publishing

This is a quick tip that shows how you can remove the Command Manager from the top of the screen and dock it to one of the sides, or let it float.

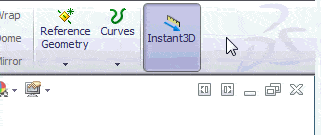

If you double-click the command manager,

Move the Command Manager

it will then appear as a separate toolbar.

Move the Command Manager

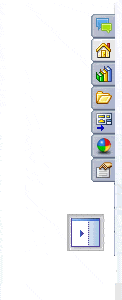

From here, you can move it to wherever you like on the screen or you can dock it. To dock it, drag it to the top or either side of the window until the Docking Icon appears.

Move the Command Manager

Drag the Command Manager to the icon and release your mouse to dock it.

Move the Command Manager

To un-dock it all you have to do is double click the Command Manager and then move it to your desired location.

This is an easy tip that can help you out by customizing and opening up your SolidWorks workspace.
