Using the View Selector in SolidWorks 2013

by John Koop, Inventor Specialist, TEDCF Publishing

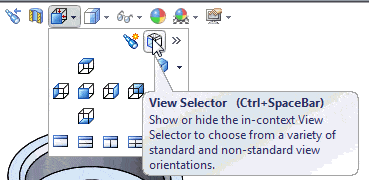

There is a new View tool in SolidWorks 2013 called the View Selector.  You can access it by clicking the down arrow of the View Orientation command and then selecting it from the menu.  You can also use the shortcut keys Ctrl+SpaceBar to access the command.

Using the View Selector

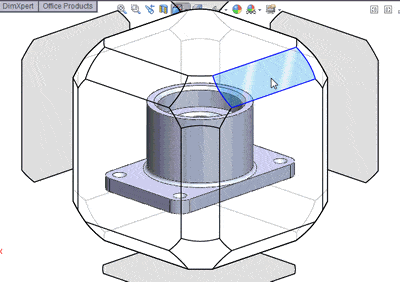

When you select the option, a cube will show up in the graphics area surrounding your part.

Using the View Selector

Now you can select any side of the cube to see the view from that angle.  This makes it much easier to navigate between views.
