Controlling Constraint Limits with Autodesk Inventor

By John Koop, TEDCF Publishing

This tip shows you how to set limits on constraints.

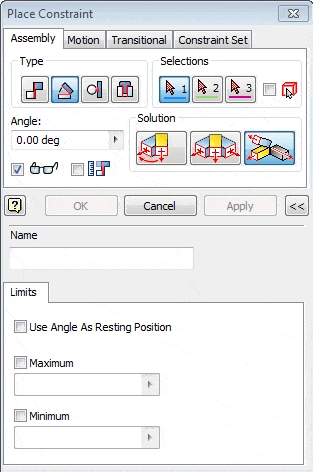

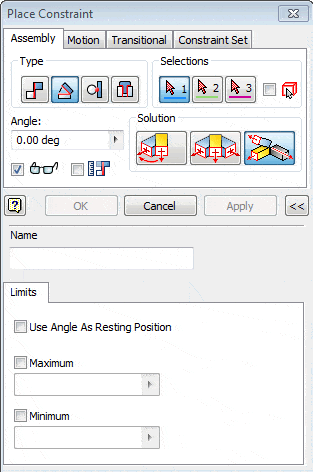

As you can see in the picture below, when you click the More(>>) button, you open more options.  You can name the constraint, which will also show up in the browser.  If you name it here, and then decide to delete the name later, it will change to its default constraint name.


The next section is the Limits section.  The first option is the Use Angle As Resting Position option.  If you click this box, whatever angle you have specified will be the resting position.  This means…
